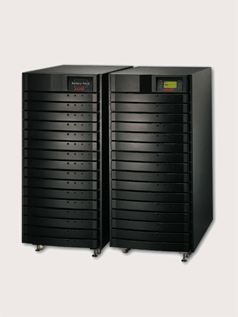

Power 1.M 3-phase modular UPS system with 4 / 8 / 16 / 20 / 24 kVA

Parallel operation
On the one hand, n+x technology allows a flexible adjustment of the power capacity of your UPS at any time. On the other hand, the modular construction provides an active parallel redundancy and thereby a high safety reservoir. Intelligent monitoring via display or software, as well as the possibility of using standard batteries, or ALFA Power Solutions bespoke battery systems make the Power 1.M in terms of operation and service, the complete system of choice.

Modular structure
The compact module structure of Protect 1.M allows you to flexibly upgrade tSE UPS power up to 24 kVA. The individual 4 kVA modules are hot-swappable, connected modules are automatically detected. In this way, you can perform system extensions during runtime. Each individual module is a separate UPS and works independently of a central control mechanism.

Intelligent control and monitoring
The powerful communication module of Protect 1.M collects information from the self-suffi cient UPS modules. The clearly designed screen informs you about all important operating conditions. You can also retrieve and control all technical parameters with the included ALFA software “CompuWatch”.
