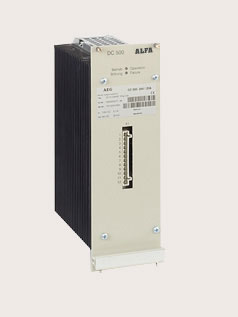

DC 500 Switch Mode Converter Module
DC 500 converts 110 V DC to 24 V DC/ 20 A. Built for high demands on ambient temperature and vibration, in industrial applications the DC 500 is used as a converter for supplying the control technology system and in power stations, for secured DC power in combination with a parallel battery and the supply of DC-consumers. In railway applications it is used as an onboard power supply.
DC 500 - Key Features
- Input blocking diode
- Output coupling diode for selective monitoring
- Suitable for operation at – 30 °C up to + 70 °C
- (with de-rating from 55 °C)
- Vibration resistance in accordance with EN50155 part 10.2.11
- Easy mounting and installation
- Compact design and low weight
- Wall mounted design available as an option
- Resistant to sustained short circuit
- CE-compliant
